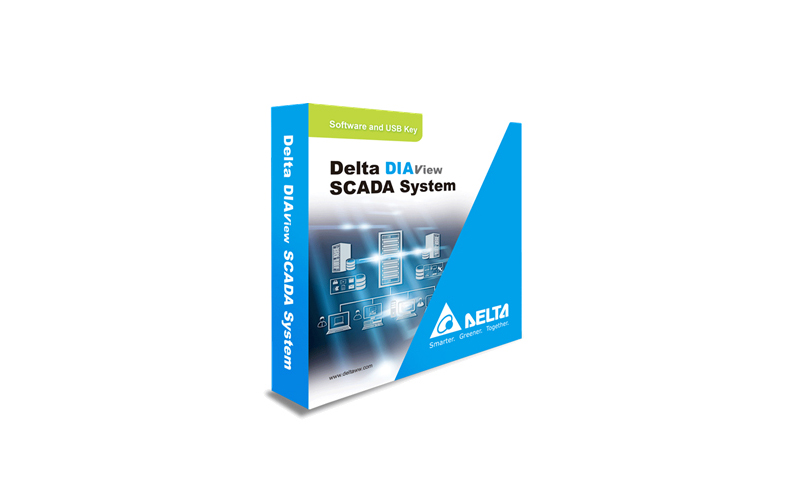

DIAView Scada System

Delta’s DIAView SCADA (Supervisory Control And Data Acquisition) system is an industrial automation management system for providing real-time system control, gathering information and carrying out analysis for remote monitoring and control, implementing system management and production line visualization, and increasing overall plant efficiency and capacity. The DIAView SCADA system can be widely applied in industries such as machinery, metallurgy, water treatment, HVAC, packaging, central heating control, environmental monitoring, textiles, energy management, transportation, smart buildings and others.

Applications

HVAC, water treatment, central heating, electronics manufacturing

Features and benefits

  • Stable industrial communication, seamless integration with Delta PLC & other products
  • WPF technology for intuitive interface
  • Flexible, versatile variables and parameters
  • Friendly graphical demonstration
  • Strong and efficient alarm system
  • Easy-to-learn VBScript language
  • Reliable user authority management
  • I/O points: 64, 128, 256, 512, 1000, 1500, 3000 and unlimited
  • Licensing: via USB hardware key to enable all authorizations

SCADA System

DIAViwew SCADA System can run reliably in the robust Delta Industrial PC DIAVH

DIAVH-PPC193100 / DIAVH-PPC195100

The DIAView PPC series is low power consumption, high performance, high reliability, and fully-sealed fan-less industrial panel PC combined with aluminum alloy die cast technology on front and rear panels for improved dissipation.

Delta’s DIAView PPC series is suitable for plastic & rubber machinery, solar photovoltaic, automotive control and other automation applications and industries.

Specifications

  • Intel® I3 3227U/ Intel® I5 3337U dual-core processor
  • 19″ TFT LCD resistive touch screen
  • 4GB DDRIII memory equipped as standard
  • 4x USB ports / 4x Serial COM ports (3x RS-232, 1x RS-485 / RS-485 / RS-422)
  • 1x VGA, 1x HDMI display port
  • 2x RJ45 Gigabit Ethernet LAN
  • 1xAudio port
  • Fully-sealed fan-less design, suitable for harsh industrial environment applications
  • Color: Silver
